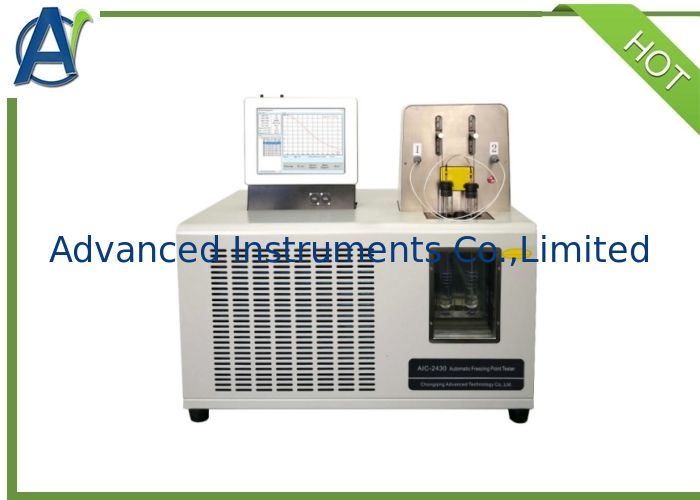

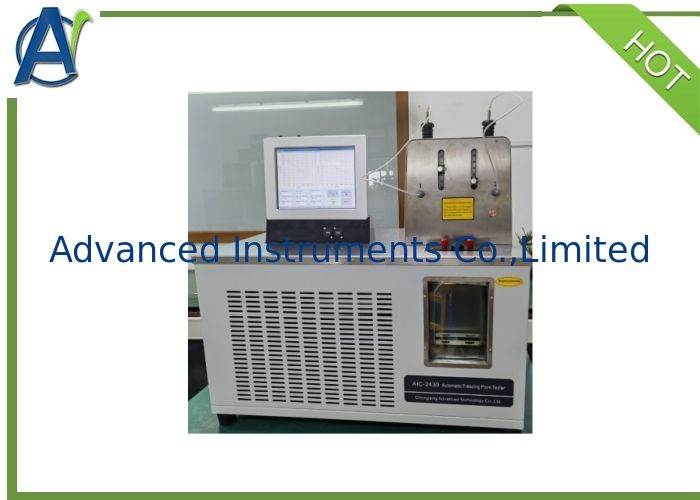

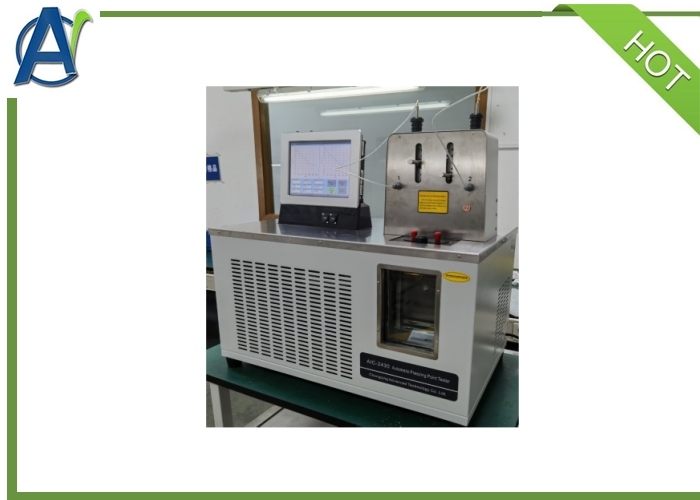

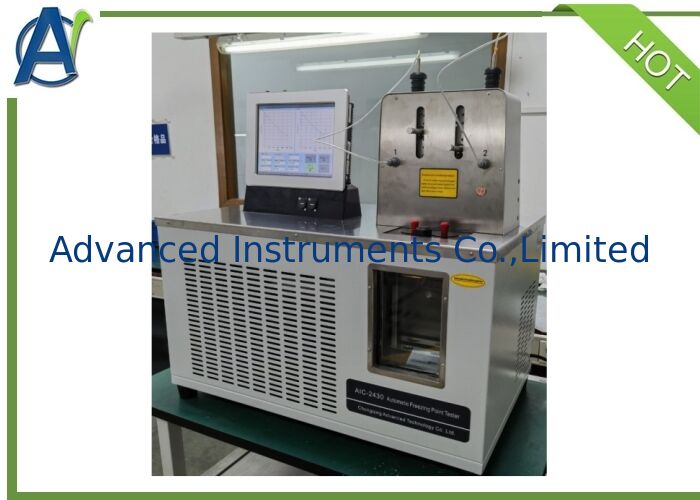

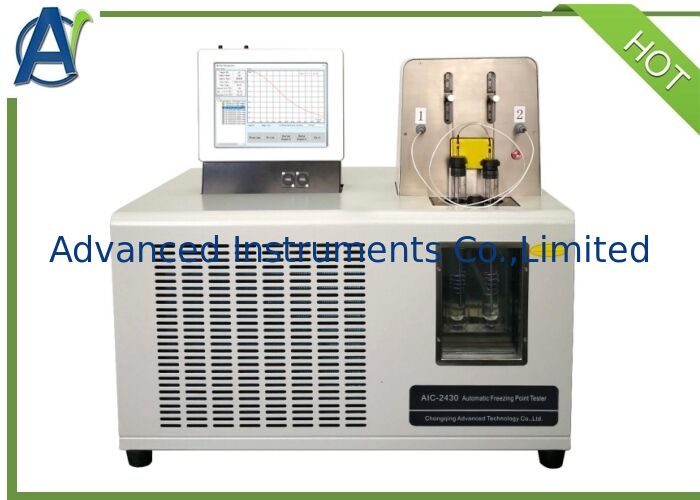

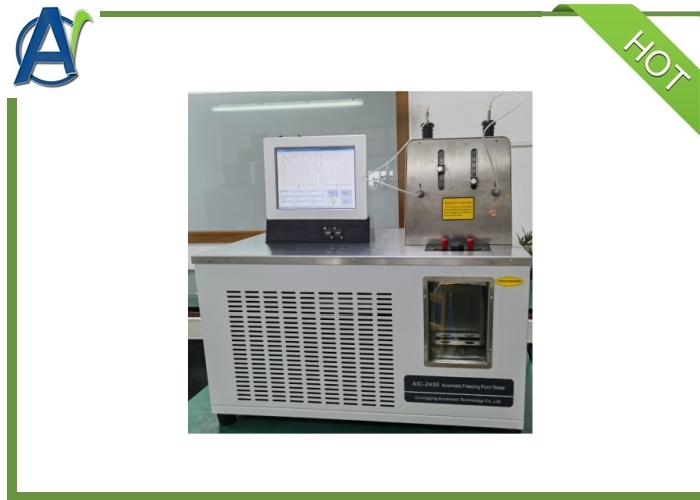

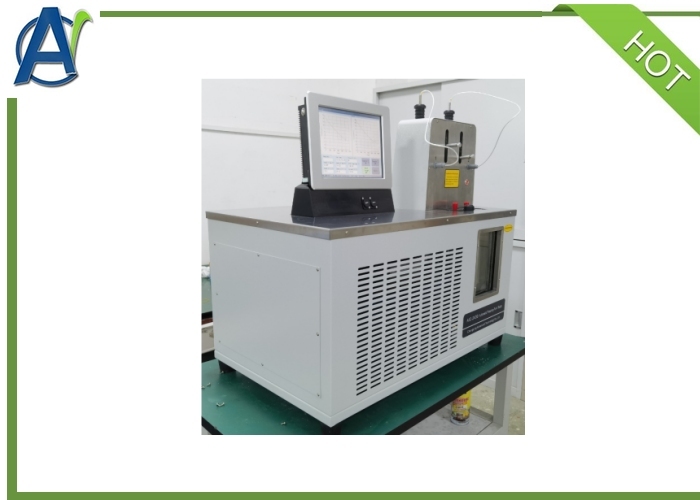

ASTM D1177 Automatic Freezing Point Tester of Engine Coolants and Condensation Liquids

Informazioni di base

Luogo di origine:	Cina
Marca:	Advanced Instruments
Certificazione:	ASTM D1177
Numero di modello:	AIC-2430

Quantità di ordine minimo:	1 set
Prezzo:	US$6000-7000/set
Imballaggi particolari:	custodia in compensato
Tempi di consegna:	15 giorni
Termini di pagamento:	T/T, L/C, D/P
Capacità di alimentazione:	50 serie al mese

Miglior prezzo Contattaci

Standard di prova:	ASTM D1177	Alimentazione elettrica:	AC ((220±10%) V 50 Hz
Consumo totale di energia:	≤2000W	Intervallo di congelamento:	-54℃~2℃
Controllo della temperatura freddo del bagno:	-70℃~30℃	Precisione del controllo della temperatura:	± 0,1 ℃
Dimensione:	770mmx480mmx730mm
Evidenziare:	ASTM D1177 , Automatic Freezing Point Analyzer , Engine Coolant Freezing Point Testing Instrument

Product Description

The ASTM D1177 Automatic Freezing Point Tester is designed and made as per the National Standard of People's Republic of China GB/T2430 "Test Methods for Freezing Point of Jet Fuels" and the Industry Standard of People's Republic of China SH/T0090 "Test Methods for Freezing Point of Engine Cooling Liquid". Equipped with different accessories, it can be used to determine freezing point of jet fuels, engine cooling liquids and condensation liquids. It is a multifunctional freezing point tester.

Product Advantages

1.This Digital Freezing Point Tester is composed of refrigeration system, industrial control upper computer control system, embedded hardware control system, electromechanical stirring system, cold bath test and observation system, frame structure shell system, etc.

2.The Automatic Freezing Point Analyzer is equipped with a 15-inch industrial computer touch screen, parameter setting before the experiment, monitoring during the automatic experiment, and the display of related experimental data (such as real-time cooling curve) can be realized on the touch screen, and the software interface adopts a humanized design, and the functions are clear at a glance.

3.The cold bath device of this instrument can carry out parallel tests of two test tubes at the same time; The stainless steel cooling bath is inlaid with multi-layer internal air heated glass windows, which have good thermal insulation performance, no dew and no frost, and excellent visual performance.

4.The overlapping imported compressor refrigeration system has fast cooling speed, low noise, no vibration, and the lowest temperature can reach -75°C.

5.The cold bath adopts special double-layer electrically heated glass to prevent fogging, facilitate observation, and solve the problem of easy damage to the transportation of traditional dewar bottles.

6.Built-in high-precision temperature controller, sensor and heating tube to form a temperature control system; The two parts of control refrigeration and heating compensate each other to achieve thermal equilibrium, so that the temperature control accuracy reaches ±0.1°C.

7.A special motor drives the test stirring device for linear motion up and down.

8.The Freezing Point Testing Instrument can automatically capture the freezing point, and according to the temperature recovery characteristics of the freezing point, the changes can be intuitively seen on the curve of the main interface.

9.The cold bath temperature of this instrument is reduced by 28°C from the preset freezing point, and the system is automatically controlled without manual intervention.

10.The Laboratory Freezing Point Detector has functions such as data transmission, external printer, etc., and supports connection to LIMS system.

The Technical Specifications and Parameters

Power supply	AC 220 V±10%, 50 Hz
Cold trough	Stainless steel cold trough, glass observation window
Freezing point range	-54℃～2℃
Temperature controlling range of cold trough	-70 ℃～30℃
Temperature controlling accuracy	±0.1 ℃
Refrigeration system	new type of refrigeration compressor
Heating power	350W
Stirrer for sample	stirred by an electromagnet, 60～80 times/min
Ambient temperature	15℃～35℃
Relative humidity	≤80%
Total power consumption	≤2000W
Dimension	770㎜×480㎜×730㎜
Net Weight	45kg

ASTM D1177 Automatic Freezing Point Tester of Engine Coolants and Condensation Liquids 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
