ASTM D4870 Determination of Total Sediment in Residual Fuels Oils

Informazioni di base

Luogo di origine:	Cina
Marca:	Advanced Instruments
Certificazione:	ASTM D4870; ISO 10307
Numero di modello:	AIC-0701

Quantità di ordine minimo:	1 set
Prezzo:	US$10000-15000/set
Imballaggi particolari:	custodia in compensato
Tempi di consegna:	15 giorni
Termini di pagamento:	T/T, L/C, D/P
Capacità di alimentazione:	20 set al mese

Miglior prezzo Contattaci

Standard di prova:	ASTM D4870	Alimentazione elettrica:	CA220 V±10%, 50 Hz
Accuratezza del controllo della temperatura del bagno di invecchiamento:	±0,5℃	Bagno di invecchiamento - range di controllo della temperatura:	Temperatura ambiente ~120°C
Sistema di riscaldamento - potenza di riscaldamento:	600W	Sistema di riscaldamento - modulo di riscaldamento:	Bagno in metallo, due fori
Intervallo di controllo della temperatura del filtro caldo:	10℃	Quantità filtri caldi:	2 set
Generatore di vapore - pressione del vapore:	0-0.4MPA	Pompa per vuoto - grado di vuoto:	200mbar
Velocità dell'agitatore magnetico:	(0~2400) giri/min, (0~99) file elettronico regolabile
Evidenziare:	ASTM D4870 , Residue Fuel Oils Total Sediment Tester , Fuel Residue Sediment Analyzer

General Introduction

This ASTM D4870 Total Sediment in Residual Fuels Oils Tester is designed and manufactured in accordance with the requirements of two industry standards in the People's Republic of China: SH/T 0701 Residual Fuel Oil Total Sediment Determination Method (Hot Filtration Method) and SH/T 0702 Residual Fuel Oil Total Sediment Determination Method (Aging Method). Applicable to: 1. Determine the total sediment in residual fuel oil with a viscosity of less than 55mm ²/s at 100 ℃ and blended distillate fuel oil containing residual components according to SH/T 0701 standard requirements. 2. According to the requirements of SH/T 0702 standard, the stability of oil products during storage and transportation can be predicted by measuring the tendency of residual fuel oil to form precipitates.

This Total Sediment in Residual Fuels Oils Analyzer is an essential tool for testing and analyzing the total sediment of residual fuel oil in industries such as petrochemicals, transportation, national defense, as well as related universities, research institutes and other departments.

This Total Sediment in Residual Fuels Testing Instrument is also essentially equivalent to the technical requirements of ISO 10307-1 and ISO 10307-2 standards, as well as IP375 and IP390 standards.

Product Advantages

1.Compliant with the requirements of SH/T 0701 and SH/T 0702 standards, it is a dual-purpose machine with high cost-effectiveness.

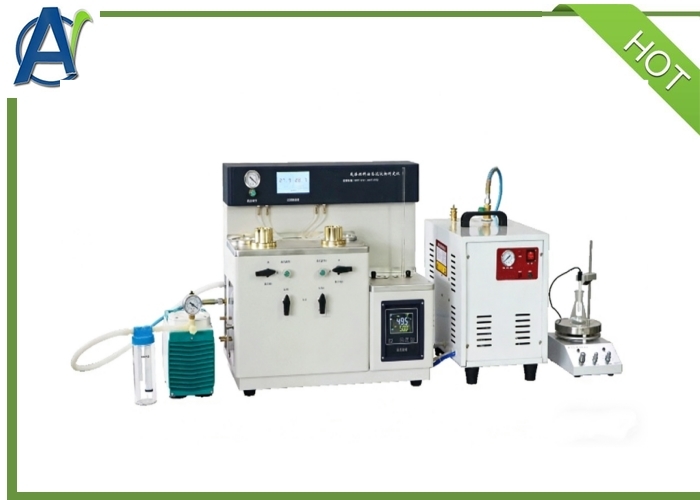

2.Composed of an instrument host, steam generator, vacuum pump, and constant temperature magnetic stirrer, it has a compact structure and is easy to use.

3.The host has two sets of heating and cooling systems, which can be switched according to the test requirements and controlled conveniently and quickly.

4.The main machine has built-in aluminum alloy aging bath, copper filter, double heating hole mode, and uniform heat conduction in the bath.

5.The host has two test holes, which can test two samples simultaneously.

6.Standard configuration includes fully automatic electric heating steam generator, oil-free vacuum pump, and constant temperature magnetic stirrer, with complete supporting facilities.

The Technical Specifications and Parameters

Power supply	AC (220 ±10%)V, 50 Hz
Aging bath	Temp. control range: room temp.~120℃ Temp. control accuracy:±0.5℃
Heating system	Heating power: 600W Heating mode: metal bath, two holes
Hot filter	Temp. control range:10℃ Temp. control accuracy:1℃ Qty:2 sets
Using Condition	Environment temp. (5-40)℃,RH≤85%
Outer dimension	570mm×320mm×560mm
Net weight	15kg

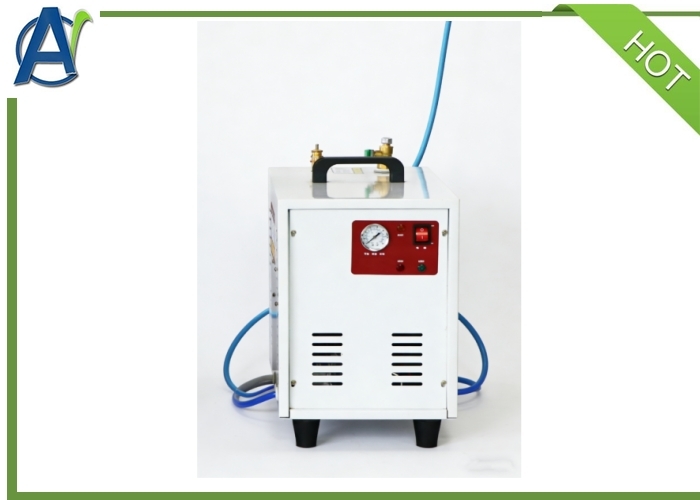

Steam generator	Pressure:(0~0.4)MPa
Vacuum pump	Vacuum degree: 200mbar

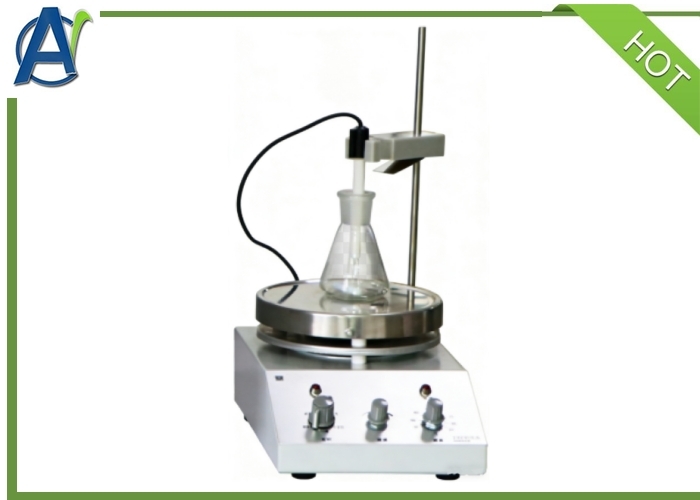

Magnetic stirrer	(0~2400)r/min, (0~99)Electronic adjustable

ASTM D4870 Determination of Total Sediment in Residual Fuels Oils 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
