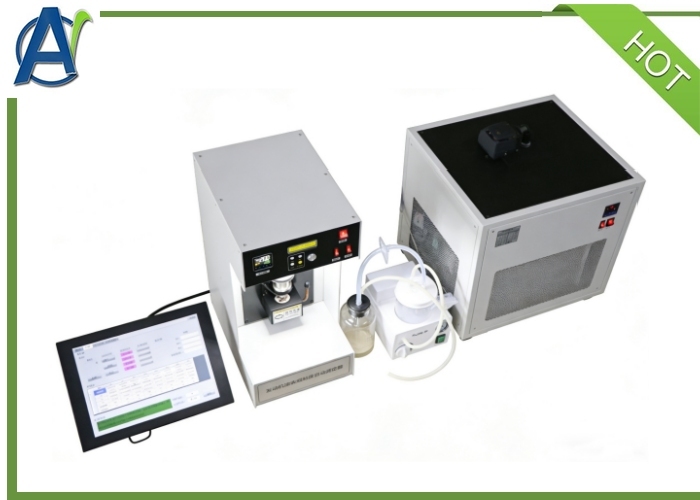

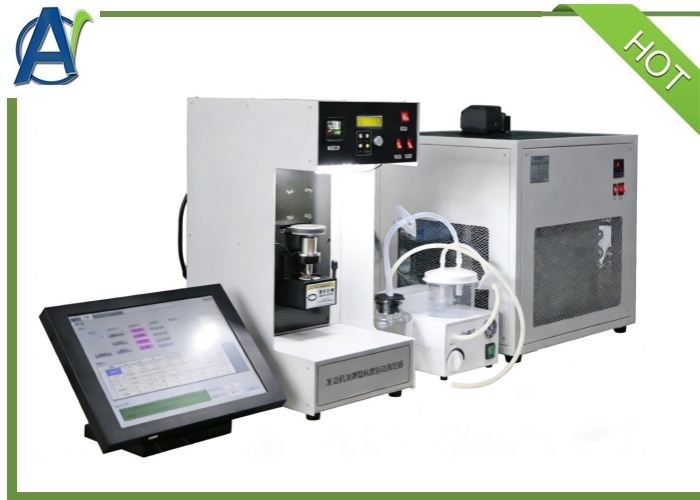

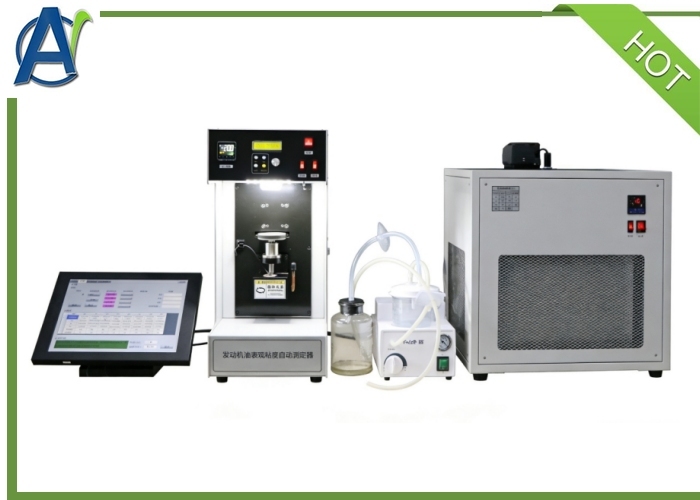

ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine

Informazioni di base

Luogo di origine:	Cina
Marca:	Advanced Instruments
Certificazione:	ASTM D5293
Numero di modello:	AIC-6538

Quantità di ordine minimo:	1 INSIEME
Prezzo:	US$10000-15000/set
Imballaggi particolari:	custodia in compensato
Tempi di consegna:	20 giorni
Termini di pagamento:	T/T, L/C, D/P
Capacità di alimentazione:	50 serie al mese

Miglior prezzo Contattaci

Standard di prova:	ASTM D5293	Alimentazione elettrica:	CA 220 V±10 V, 50 Hz
Consumo energetico massimo:	2KW	Suono di misurazione della temperatura:	(-50~100)℃
Precisione di misurazione della temperatura:	±0,5℃	Gamma di refrigerazione:	-60℃~Ambiente
Precisione del controllo della temperatura:	±0.05℃	Intervallo di misurazione:	(1200~27000)mPa.s
Potenza di riscaldamento:	800 W.	Dimensioni dell'host dello strumento:	420 mm×300 mm×620 mm
Dimensioni del bagno freddo:	500 mm×530 mm×615 mm
Evidenziare:	ASTM D5293 , Automatic Apparent Viscosity Tester of Engine Oils , CCS(Cold-Cranking Simulator)Testing machine

General Introduction

This Automatic Apparent Viscosity Tester of Engine Oils is designed and manufactured according to the standards China GB/T 6538 Determination of apparent viscosity of engine oils using the cold-cranking simulator (CCS method) and American ASTM D5293.At the temperature range: -35℃∼-5℃,the interval 5℃ temperature condition , and the viscosity range:1500mPa•s∼27000mPa•s to detect the apparent viscosity of the apparent oils.

Product Advantages

1.The automatic measurement system of the instrument includes various operations required for experiments such as injection, temperature control, detection, calculation, storage, and printing, and automatically detects the rotation speed, and the viscosity results can be automatically generated according to the rotation speed without manual calculation.

2.The Automatic Apparent Viscosity Tester is a split structure, which avoids the impact of vibration on the experiment due to the vibration generated by the instrument working.

3.The control system of the CCS Automatic Apparent Viscosity Testing instrument adopts industrial computer and WINDOWS operating system. It has multiple interfaces such as USB, network, WIFI, etc. The PC-based CPU has fast data processing speed, stable work, and strong versatility.

4.The Automatic Apparent Viscosity Testing Machine is equipped with an advanced 10-inch full-color, high-performance, high-definition TFT LCD touch screen, which is sensitive to touch and reliable in quality. All the operation and data display of the instrument can be realized on the touch screen, and the touch screen adopts a humanized layout design, and the functions are clear at a glance.

5. Imported Omron temperature controller controls stator temperature, the temperature is accurate, convenient and fast.

6.The CCS Cold Cranking Simulator test machine adopts a stacked refrigeration system with imported compressor andimported refrigerant, which can quickly reduce the sample temperature to the temperature required by the experiment. Long-term use reliability exceeds that of semiconductor refrigeration.
7. Improved rotor, low torque test state, high repeatability.

8.The software has 7 built-in B-value curves, so that each different temperature test point has a corresponding temperature curve. Compared with a set of B-value curve schemes of peers, the accuracy is higher. Moreover, customers can also calibrate the required B-value curve according to the temperature point according to the wear and tear of the machine in the later stage.

9.The instrument's transmuter stator system does not need to be cleaned with special solvents.

10.The cleaning system of the instrument has a heating function, which increases the temperature of the area to be cleaned after the experiment to improve the efficiency of cleaning.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Maximum power consumption	2kw
Temperature measurement range	(-50~100)℃
Temperature measurement accuracy	±0.5℃
Refrigeration range	-60℃~Ambient
Temperature control accuracy	±0.05℃
Measurement range	(1200~27000)mPa.s
Heating power	800w
Usage environment	Ambient temperature (-40~30) °C, Relative humidity: ≤80%
Dimension	550mm×800mm×1000mm
Net weight	Instrument host:420mm×300mm×620mm; Cold bath: 500mm×530mm×615mm

ASTM D5293 Cold-Cranking Simulator Automatic Apparent Viscosity Tester of Engine Oils ,CCS machine 1

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
