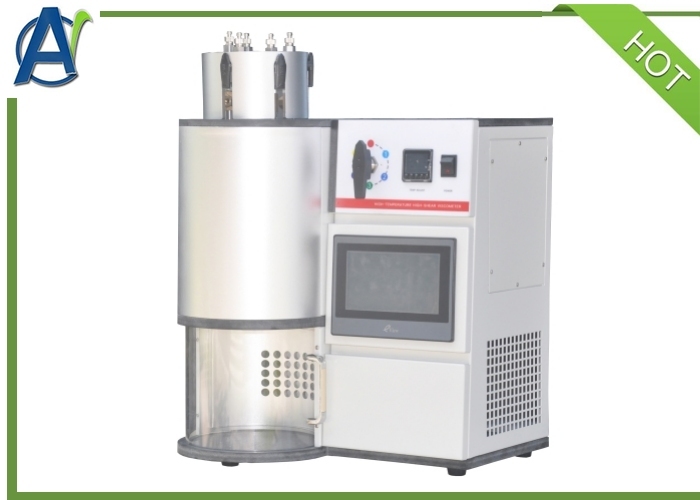

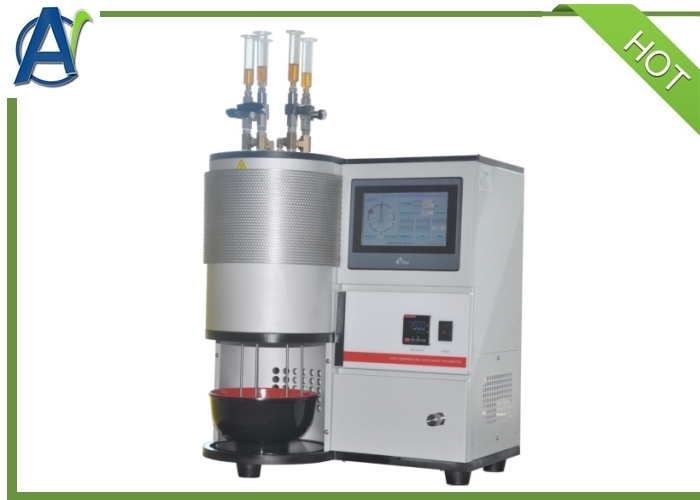

ASTM D5481 Lubricating Oil High-Temperature High-Shear (HTHS) Dynamic Viscosity Tester (Multicell Capillary Viscometer Method)

This Lubricating Oil HTHS Dynamic Viscosity Tester This instrument employs a multi-capillary viscometer equipped with pressure-measuring, temperature-measuring, and timing devices to determine the high-temperature high-shear (HTHS) apparent viscosity of engine oils under the conditions of 150°C and a wall apparent shear rate of 1.4 × 106s-1.
Using the shear rate specified in this standard can reduce the differences between this method and other test methods for determining high-temperature high-shear apparent viscosity.
Viscosity is measured directly via a calibration curve established using Newtonian oils with apparent viscosities ranging from 2 mPa·s to 5 mPa·s at 150°C.

1.Widely Adopted: Trusted by most domestic customers for reliable performance.

2.Interchangeable Parts: Accessories compatible with imported instruments for easy maintenance.

3.Dedicated Software: Equipped with specialized HTHS viscosity calculation software for accurate data processing.

4.24/7 Operation: Designed for uninterrupted 24-hour, 365-day use in demanding labs.

5.Efficient Cleaning: No solvents needed; only a small fresh sample flush required between tests.

6.Standardized Capillaries: Precision glass capillaries (0.15 mm ID, 16 mm length) fully compliant with standards.

7.Flexible Testing: Customizable shear rates and temperatures for research applications.

8.High Throughput: 5 sample cells enable sequential testing at 15–20 samples per hour.

9.Intuitive Control: Touch LCD screen for direct, user-friendly operation.

10.Smart Reporting: Software auto-recommends test pressures and generates Excel-compatible reports.

11.Patented Technology: Protected under Patent No. ZL201821712254.6 for oil shear viscometry.

1.What's the delivery time?

About 40days.

2.What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
