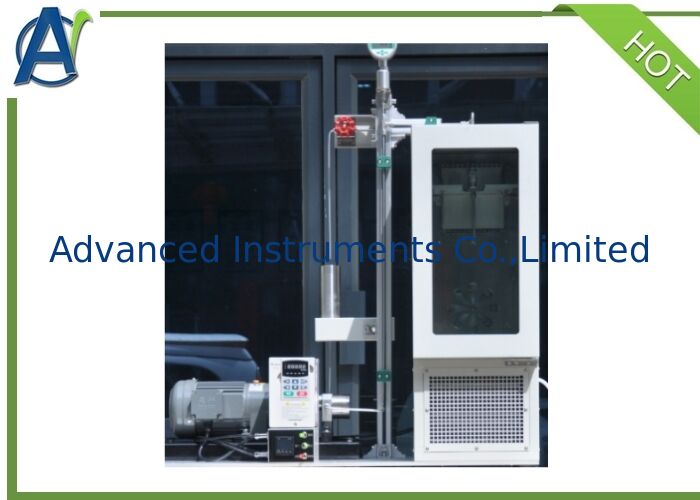

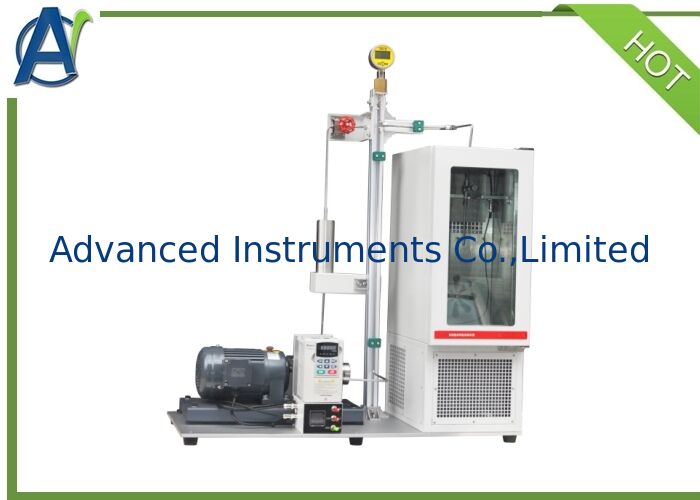

ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy

ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy
ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy
Informazioni di base
Luogo di origine: Cina
Marca: Advanced Instruments
Certificazione: ASTM D1092
Numero di modello: AIC-1092
Quantità di ordine minimo: 1 set
Prezzo: US$20,000-40,000/set
Imballaggi particolari: Custodia in compensato
Tempi di consegna: 40 giorni
Termini di pagamento: T/t, l/c, d/p
Capacità di alimentazione: 20 set al mese
Miglior prezzo Contattaci
norma di prova: ASTM D1092 Garanzia: 1 anno intero
Pacchetto di trasporto: Custodia in compensato Trandmark: Strumenti avanzati
Alimentazione elettrica: AC220V 50Hz Servizio dell'OEM: Disponibile
Metodo di refrigerazione: Compressore d'aria importato Esposizione di pressione: manometro
Precisione del controllo della temperatura: ± 0,1 ℃ Lingua del software: Inglese
Functioin: Prevedere la caduta di pressione nel sistema di lubrificazione Metodo di temperatura costante: Termostato esterno
Controllo della temperatura: PID digitale Controllo della pressione: regolatore di pressione
Consumo energetico: 600W Applicazione: Test sui grassi lubrificanti
Evidenziare:

ASTM D1092

,

Grease apparent viscosity tester

,

Grease viscometer

General Introduction

This instrument meets the test method for the apparent viscosity of lubricating greases.
It is applicable for the determination of the apparent viscosity of lubricating greases within a temperature range of -54°C to 38°C, expressed in Poise (P).
Measuring Range:
At 0.1 s-1: 25 ~ 105P
At 15,000 s-1: 1 ~ 100 P
A floating piston driven by a hydraulic system forces the sample through a capillary tube.
The apparent viscosity is calculated from the predetermined flow rate and the applied force in the system according to the Poiseuille equation.
Apparent viscosity is measured at 16 shear rates using 8 capillary tubes of different diameters and 2 pump speeds.
The test results are presented as a log-log plot of apparent viscosity versus shear rate.

Features

1.The Apparent Viscosity Test Instrument uses stainless steel sample tube, precision machined, matching precision piston;

2.Four separate pressure pipeline systems;

3.The Apparent Viscosity Test Instrument has 8 sets of special capillary tubes, which meet the standard requirements;

4.Microcomputer temperature controller, digital display, PT100 temperature sensor, high precision;

5.Integrated hydraulic pump, the flow is more stable;

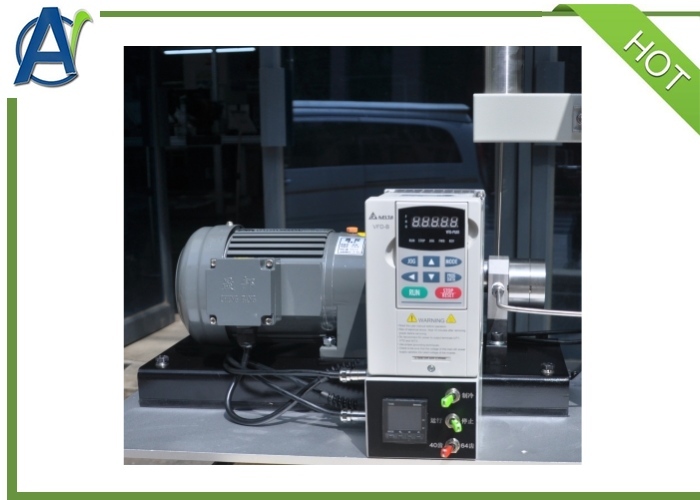

6.The Apparent Viscosity Test Instrument adopts imported electric motor drive gearbox;

7.Electric switching speed, convenient operation;

8.A set of special tools is supplied with the apparent viscosity tester.

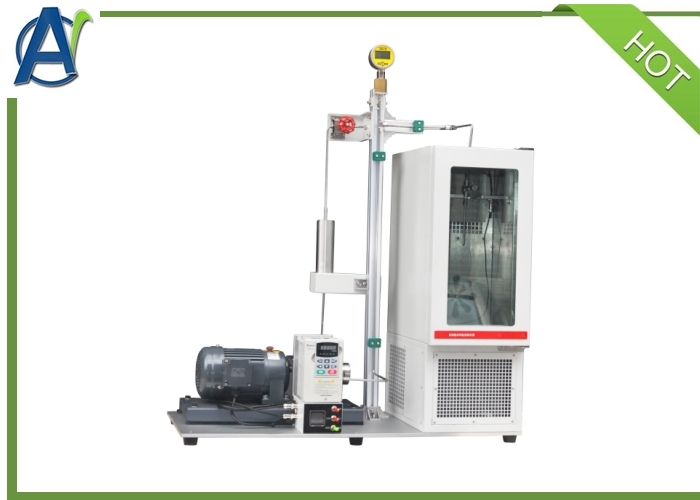

ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy 0
The Technical Specifications and Parameters
Model AIC-1092
Applicable Standards ASTM D1092
Constant temperature method External thermostat
Refrigeration method Imported air compressor
Temperature control Digital PID temperature controller
Pressure display Pressure gauge
Pressure control Pressure regulator
Temperature control accuracy ±0.1ºC
Total power 600W
Power Supply AC220V, 50Hz

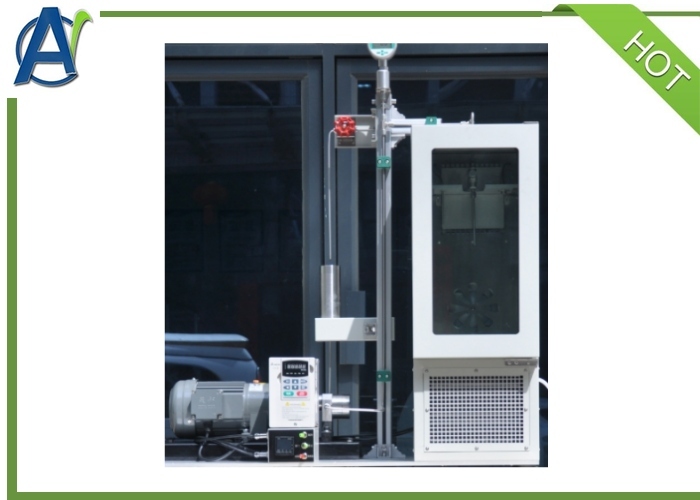

ASTM D1092 Apparent Viscosity Tester for Lubricating Greases with Digital PID Temperature Control and ±0.1℃ Accuracy 1
FAQ

1.What's the delivery time?

About 40days.

2.What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
