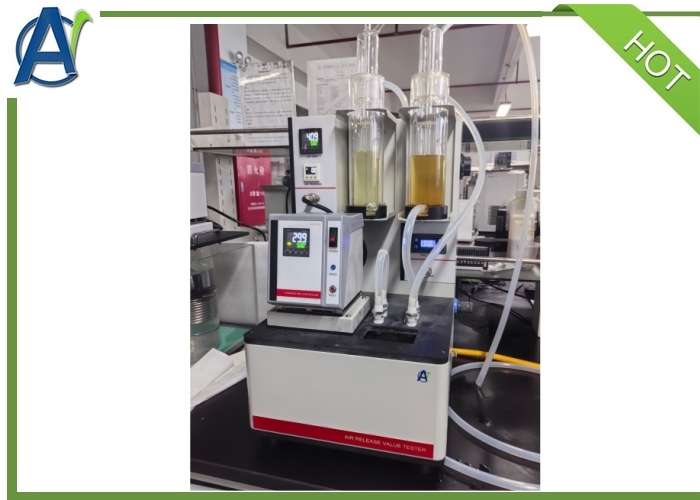

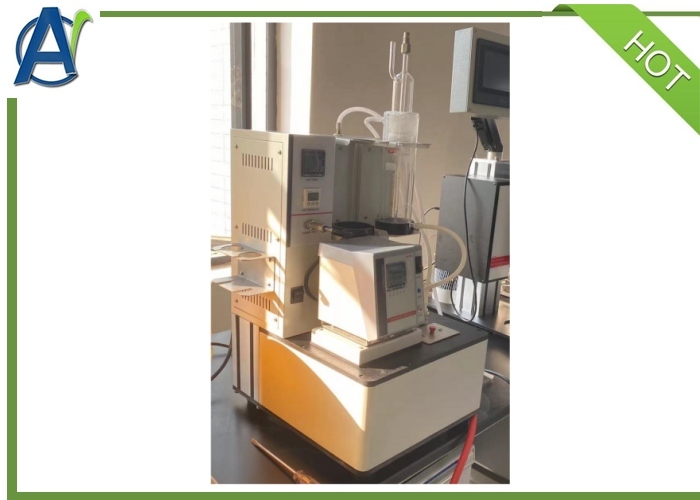

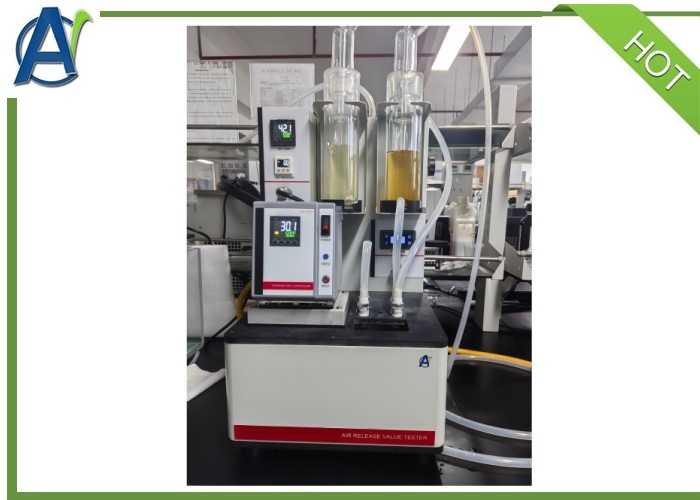

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
Informazioni di base
Luogo di origine: Cina
Marca: AI
Certificazione: ISO9001
Numero di modello: ARV-II
Quantità di ordine minimo: 1 set
Prezzo: USD$3,000~5,000
Imballaggi particolari: custodia in compensato
Tempi di consegna: 30 giorni
Termini di pagamento: T/T, Western Union, L/C
Capacità di alimentazione: 20 set al mese
Miglior prezzo Contattaci
Garanzia: 1 anno intero Applicazione: prova del grasso
Lingua: inglese Servizio dell'OEM: Disponibile
Intervallo di controllo della temperatura: Ambiente~80±1℃ Funzione: Testare la capacità degli oli di separare l'aria intrappolata
Norma di prova: ASTM D3427,SH/T0308 Alimentazione elettrica: AC220±10% 50Hz±5%
Esposizione di pressione: Digitale Pressione di esercizio: 19,6 kpa
Controllo della pressione: Valvola di regolazione precisa della pressione Operazione: Manuale
Display: guidato Portatile: Non portatile
Tipo: Misuratore del valore di rilascio dell'aria Modalità di cronometraggio: Temporizzatore digitale
Modalità riscaldamento: Barra elettrica
Evidenziare:

ASTM D3427 lubricant air release tester

,

SH/T0308 automatic oil tester

,

lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.
Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.
2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC
3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.
4. Stainless steel constant water bath is corrosion resistant.
5. The Air Release Properties Tester uses LED display working pressure.
6. Each tap can be connected easily.
7. Timer can display time,manual timing is not needed.
8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.
9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester 0

III. Specifications:

1
Applicable standard
SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2
Power supply
AC220±10% 50Hz±5%
3
Heating mode
Electric bar
4
Temperature controlling range
ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5
Working pressure
19.6Kpa
6
Pressure controlling
Precise pressure regulating valve
7
Timing mode
Digital timer
8
Pressure display
Digital

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
